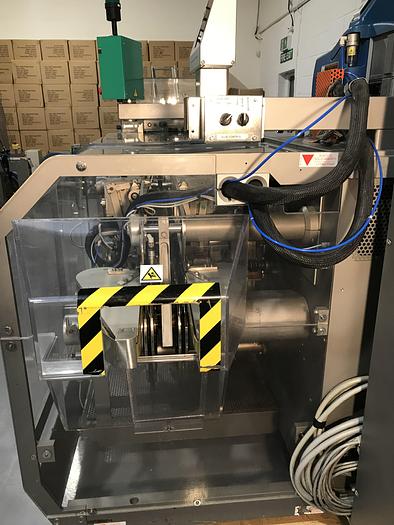

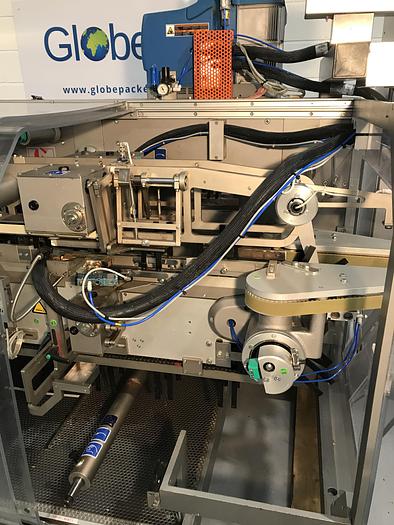

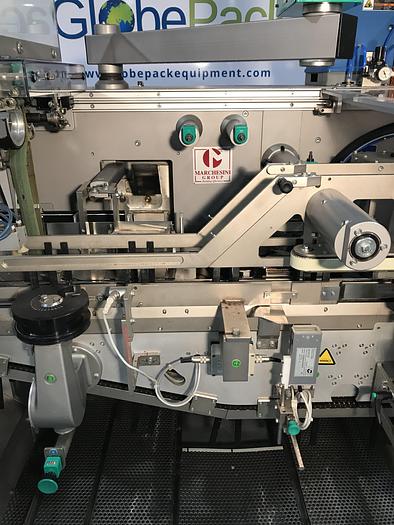

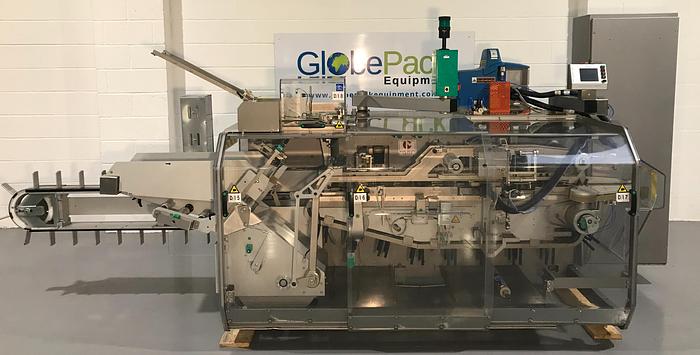

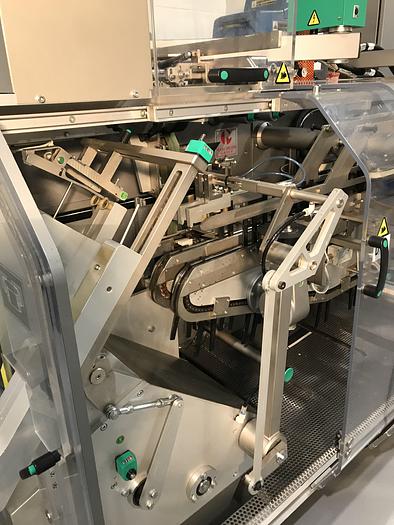

Marchesini MA 50 Automatic Horizontal Cartoner

Marchesini model MA 50 automatic continuous motion horizontal cartoner with output speeds of up to 70 cartons per minute.

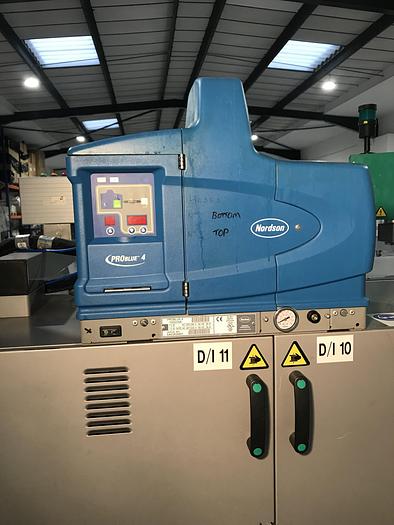

Hot glue closure type with free standing Nordson ProBlue 4 unit.

Carton size range:

• length 75mm – 200mm
• width 40mm-190mm
• height 20mm-105mm

Features:

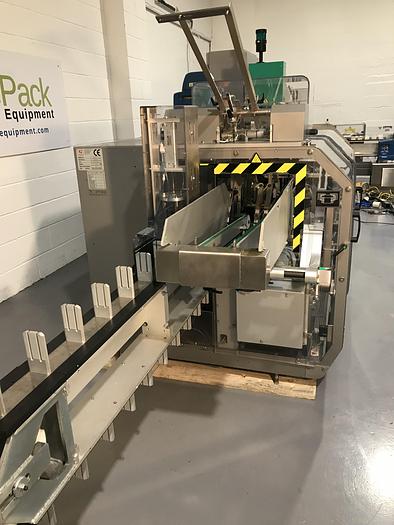

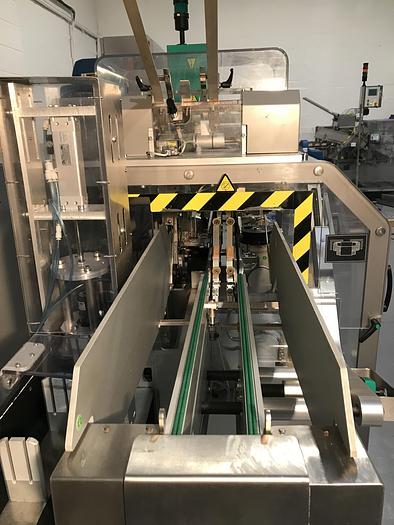

• 230mm wide adjustable flighted through conveyor (currently set for product size 230mm x 135mm)
• Siemens Simatic touch screen
• pre-folded leaflet inserter (strips)
• cross control of the presence of product/carton/leaflet
• minimum load sensors for product/carton/leaflet
• mechanical overload control unit
• automatic operating cycle with carton and leaflet pick-up only with the presence of the product
• leaflet presence checking device during insertion into the carton
• oil-bath main drive units
• emergency stop button
• fully guarded with sliding doors
• CE marked

Please note:

Missing HMI Screen

No coder

Electrical requirements 415V, 50Hz, 3 Phase, 6kW.

Compressed air consumption 80 Nl/1’.

Manuals, technical documentation and drawings in English and Italian.

Machine size: 4900mm x 1800mm x 2200mm high, weight 2900kg.
