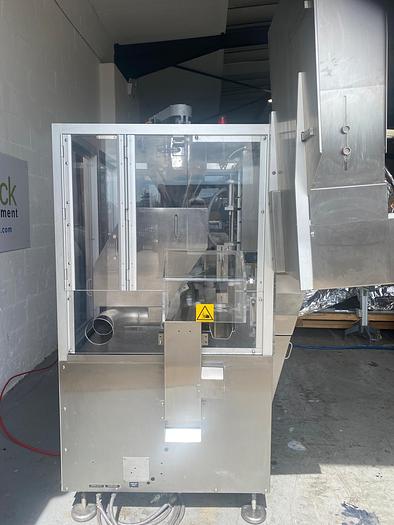

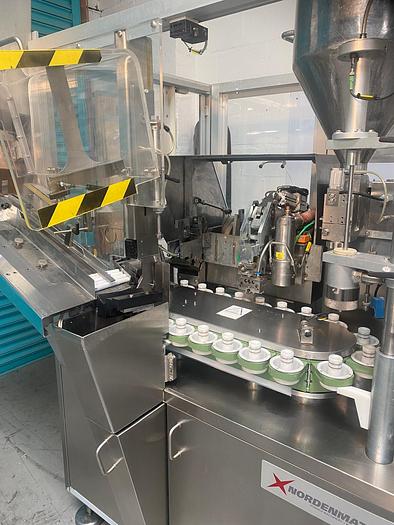

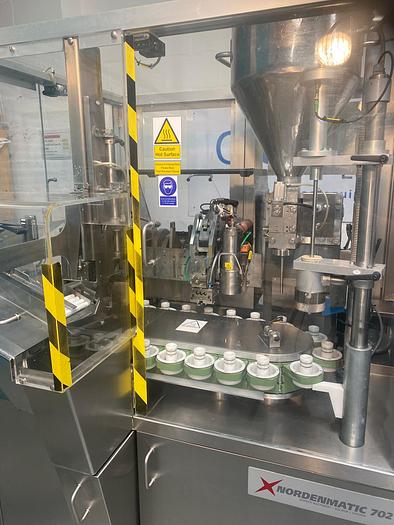

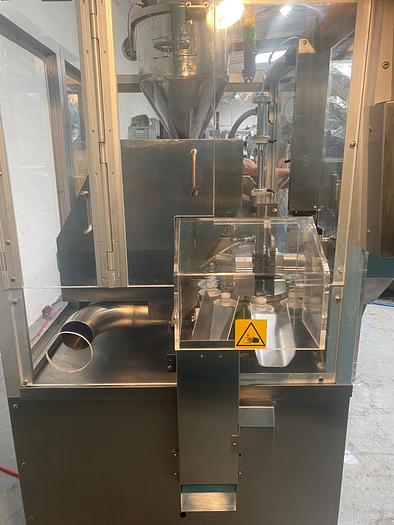

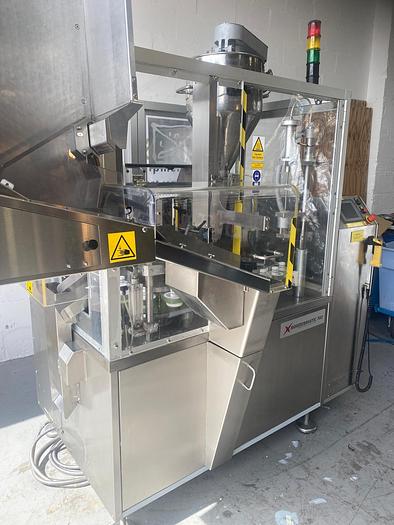

Norden NM702-C Plastic, Laminate and Aluminium Tube Filler

Nordenmatic model NM702-C intermittent tube filling and sealing machine for plastic, laminate and aluminium tubes

Key information:

Tube size range: 10mm to 50mm diameter and 50mm to 250mm length

Currently set up for plastic toothpaste tubes (16mm diameter x 140mm length) with heat seal closure

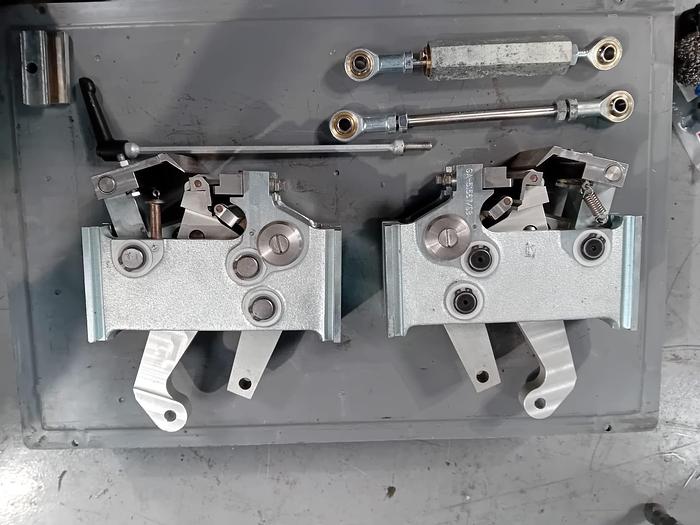

Also has parts for fold seal for aluminium tubes, twin or triple fold with 2 folding stations (not fitted)

Maximum fill volume: 300ml

Manufacturer's suggested maximum output speed of up to 80 tubes per minute depending on tube size and product viscosity

Removed from production in June 2024

Supplied with one set of format parts of your choice from our existing stock but if we don't have your required size we can provide it at an additional cost

Manuals available

Features:

22 station

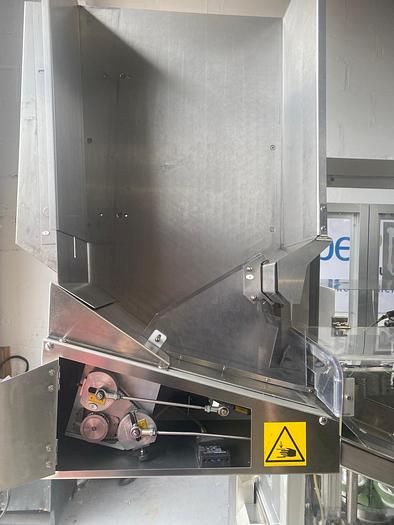

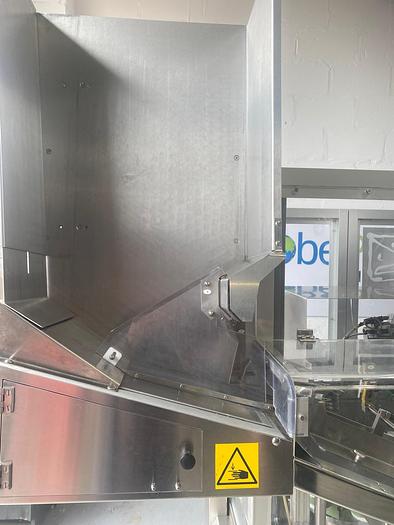

Automatic tube loader

Tube infeed

Tube cleaning

Tube orientation

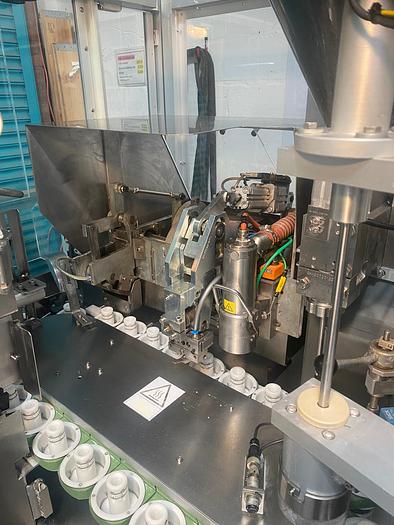

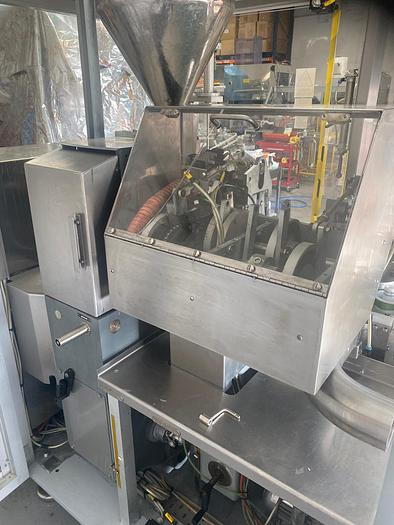

Single head tube filling

In hopper stirrer

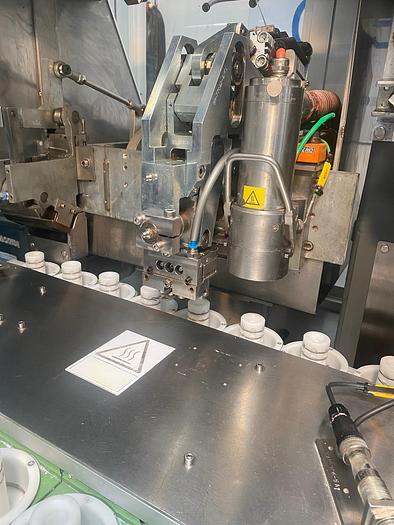

Hot air tube sealing

Imprint tube coding

Rotary tube cutting

Tube reject

Cap first tube eject

This machine was part of a complete line along with the following machines:

OCS Checkweigher, model HC, year 2009, serial number 1100316

CAM AV78 vertical cartoner, year 1985, serial number C11760AV78/UK19

Norden Nordenpac 702 cartoner (not used with the line for some time as the factory preferred to use all CAM cartoners)

Supplied: cleaned, checked and tested dry cycling

This machine can be set up to your tube size at an additional cost, please ask us for a quote
